Aqara - Zigbee Hub M1S Gen 2

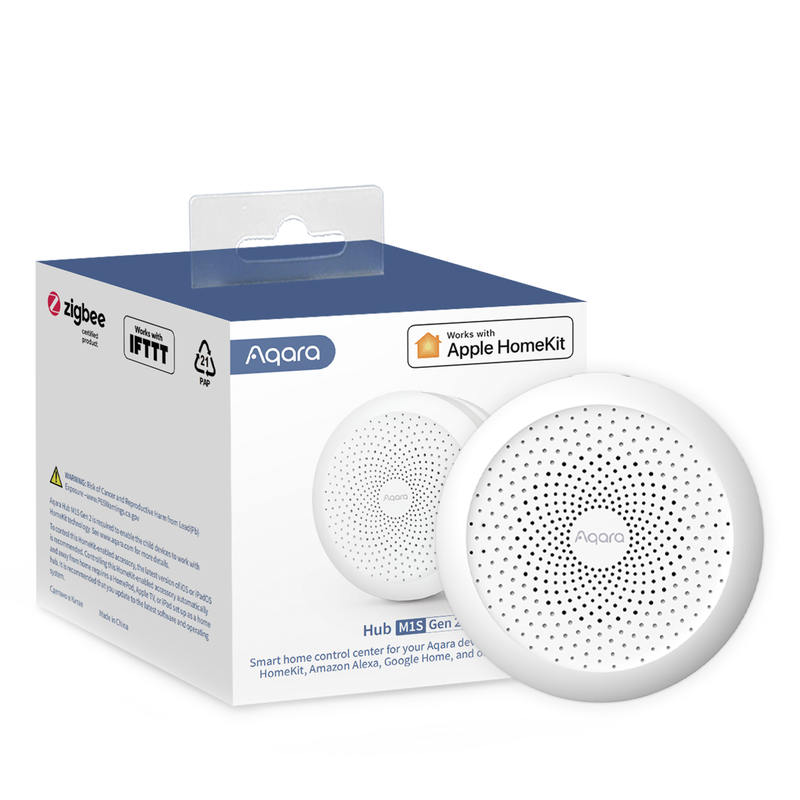

Aqara Hub M1S Gen 2

Marketing Text:

Aqara Hub M1S Gen 2 is a smart home control center, which connects Zigbee devices toWi-Fi networks. At the same time, it can manage and control smart scenes, and canconveniently control smart devices, such as plug, switch, bulb, curtain and so on.

Selling Points:

● Zigbee 3.0 support, up to 128 devices*: Supports all the latest Aqara devices basedon the fastest, most stable, and energy-efficient technology.

● Built-in Speaker: A powerful 2-watt speaker can be used as an alarm or doorbell aswell as via configurable automations.

● RGB Light and Illumination Sensor: Apart from being a Zigbee 3.0 smart home hub,the M1S Gen 2 has a built-in RGB light made of 18 powerful LEDs and a diffuser. Itcan be used as an alarm, accent, or night light and has a configurable brightness andcolor. Moreover, compared to our previous hubs, it has a fully functional illuminationsensor that can be used in automations via the Aqara Home app.

● All-Round Compatibility: Use your favorite voice assistant** or smart homeecosystem together with Aqara Home app automations.

● Enhanced Wi-Fi Connectivity: The M1S Gen 2 has a more powerful 2x2 MIMO Wi-Fi antenna and WPA3 standard support which makes the connection faster, secureand reliable.

● Focus on Security: Apart from Aqara Alert System,the M1S Gen 2 supports all 4HomeKit alarm modes.

● High-quality Components and Design: High-quality components and design are notonly a subtle addition to any room interior but also make the M1S Gen 2 more reliableby achieving constant airflow through itslarge perforated base.

● Configurable Ringtones: M1S Gen 2 now supports user-defined MP3 ringtones thatcan be uploaded for voice announcements and be used in automations. For example,the hub will say "Good night" when the corresponding scene is triggered.

*Up to 128 Aqara Zigbee child devices can be connected to the hub (repeater devices suchas Smart Plug and Wall Switch (with Neutral) are required).

**Apple Siri, Amazon Alexa, Google Assistant, and more are supported.

Specifications:

Model: HM1S-G02

Dimensions: 80×80×41.5 mm (3.15×3.15×1.63 in.)

Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, Zigbee

Input: 100-240V~, 50/60Hz, 0.2A120V~, 60Hz, 0.2AFor North America

Operating Temperature:-10°C ~ +40°C (14°F ~ 104°F)

Operating Humidity: 0% ~ 95% RH, no condensation

Wi-Fi Operation Frequency: 2412-2472 MHz

Wi-Fi Maximum Output Power: 20 dBm

Zigbee Operation Frequency: 2405-2475 MHz

Zigbee Maximum Output Power: 13 dBm

* Maximum Transmit Power and Working Frequency for EU only.

What’s in the Box: Aqara Hub M1S Gen 2, Quick Start Guide
