Cat 6 F-UTP netkapall 100 m. - DK-1623-VH-1

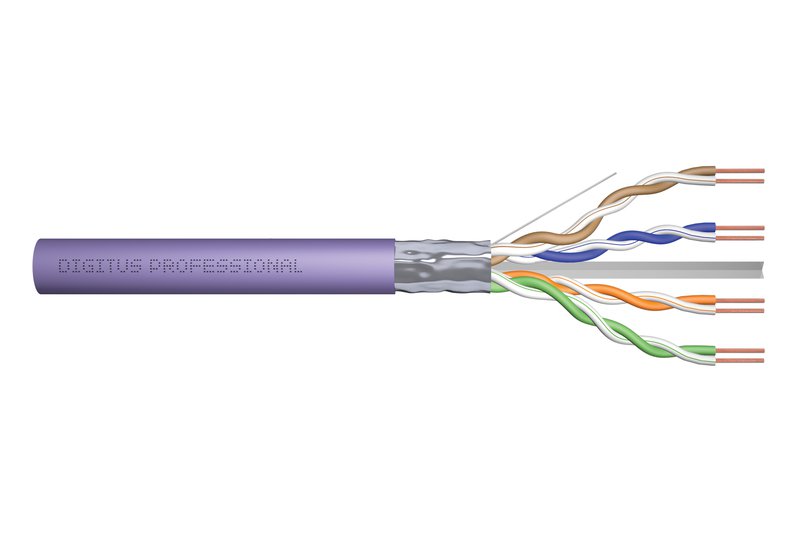

Cat6 F-UTP kapall. Lengd 100m, útdraganlegur úr pappírskassa, AWG 23/1, PVC, litur fjólublár CAT 6 F-UTP installation cable, 250 MHz Eca (EN 50575), AWG 23/1, 100 m paper box, sx, pu Future-oriented standards and high-end quality for your network. 1GBit Ethernet 250 MHz transmission frequency PoE Power over Ethernet support CPR class Eca The Digitus® Professional Cat.6 F/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 250 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-5-1. Technical Details Physical properties: Conductor: Bare annealed copper, solid AWG 23/1 Insulation: HD-PE (High Density Polyethylene) Total number of insulated conductors: 8, twisted in 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Individual pair shield: None Overall shielding: Aluminum foil, providing 100% coverage, drain wire Outer sheath: Eca to B2ca acc. to EN 50575; LSZH Outer sheath diameter (nominal): 0.5 mm (Eca); 0,6 mm (Dca); 0,8 mm (Cca); 0,08 mm (B2ca) Outer sheath color: Purple Mechanical properties: Tensile loading: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Shipping- and storage temperature range: -20 °C up to +60 °C Operating temperature range: -20 °C up to +75 °C Installation temperature range: 0 °C up to +50 °C Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca) Weight (kg/km): 46 kg (Eca); 47 kg (Dca); 48,5 kg (Cca); 48,5 kg (B2ca) Electrical properties: Impedance: 100±5 Ohm @ 1-250 MHz Capacitance: 45 pF/m nominal @ 800 Hz Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance) Voltage resistance: 72 Vdc max. Coupling attenuation: 40 dB Signal propagation delay: 535 nS/100 m max. Propagation delay: 20 nS/100 m max. Separating class: ,,c” acc. to EN 50174-2 NVP: 69% Assortment: Twisted Pair Installation Cables Length: 100 m Category: CAT 6 Color: violet CPR: Eca Jacket: LSOH Shielding: F-UTP, foil shielding Structure: 4 x 2 AWG 23/1, solid twisted pair
