Cat 6A U-FTP netkapall 305 m. - DK-1623-A-VH-305

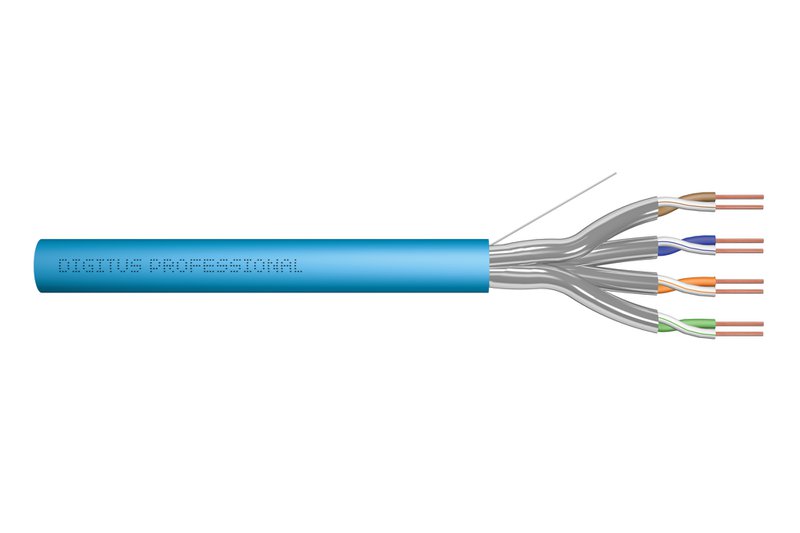

Cat6A U-FTP kapall. Lengd 305m, er á tromlu, AWG 23/1, PVC, litur blár DESCRIPTION The Digitus® Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1. TECHNICAL DETAILS Physical properties: Conductor: Bare annealed copper, solid AWG 23/1 Total number of insulated conductors: 8, twisted in 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Individual pair shielding: Aluminum foil, providing 100 % coverage Overall shielding: None, with drain wire Outer sheath: Eca to B2ca acc. to EN 50575; LSZH Outer sheath color: Light blue (RAL 5012) Mechanical properties: Tensile loading: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Shipping- and storage temperature range: -20 °C up to +60 °C Operating temperature range: -20 °C up to +75 °C Installation temperature range: 0 °C up to +50 °C Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca) Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 kg (Cca); 58 kg (B2ca) Electrical properties: Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @100-500 MHz Capacitance: 45 pF/m nominal @ 1 KHz Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance) Voltage resistance: 72 Vdc max. Coupling attenuation: CA-Type 2 Signal propagation delay: 450 nS/100 m max. Propagation delay: 25 nS/100 m max. Separating class: ,,c” acc. to EN 50174-2 NVP: 70% Assortment: Twisted Pair Installation Cables Category: CAT 6A Shielding: U-FTP, pairs in metal foil CPR: Eca Length: 305 m Color: light-blue Jacket: LSOH Structure: 4 x 2 AWG 23/1, solid twisted pair Niðurhöl og vottanir CE skjöl DoP EN DE Vottanir ext. Link ETL Certificate en Certificate GHMT mul Upplýsingar Datasheet PL
