Raspberry Pi dokka - RPI-BB01B

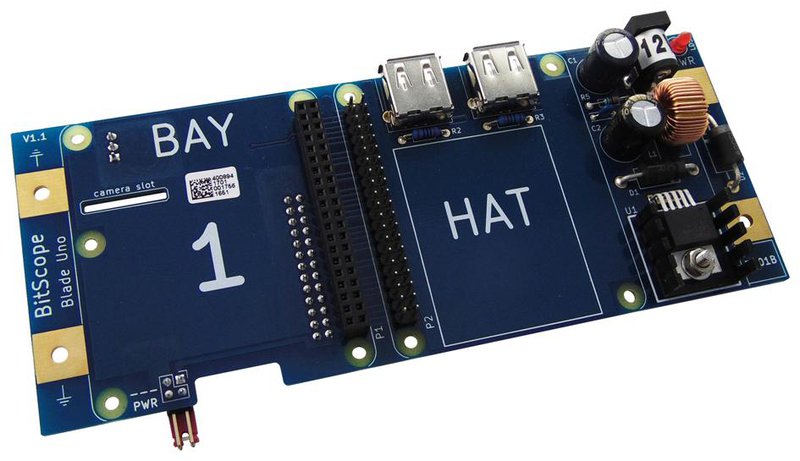

BitScope Blade Uno is a desktop, rack or wall mountable power and mounting solution for a single Raspberry Pi computer and a single HAT. Blade Uno solves the power problem when using the Raspberry Pi in industrial or other critical applications by providing constant, regulated power for a single Raspberry Pi unit and up to 6 USB devices (4 connected via the Raspberry Pi, 2 via the Blade Uno itself) from a single on-board 5V switch mode power supply. Can be used with simple plug packs, batteries, low cost uninterruptible power supplies (UPS) and even passive power over ethernet (PoE) solutions. Full access to the Raspberry Pi I/O including I2C, SPI, UART, PWM and GPIO is provided via the Blade HUB CAP expansion socket underneath the Raspberry Pi. Connect personality cards (e.g. a real-time clock, operation status displays, or almost any other physical I/O that conform to these standards). The HAT bay will accomodate standard Raspberry Pi HATS as well as small breadboards for easy protot Design for one Raspberry Pi and one HAT Power and connect up to 4 x BitScopes or other USB devices via Raspberry Pi Additional 2 x power only USB ports on Blade Uno Raspberry Pi power control header Accepts unregulated 9V to 48V DC power Powerful on-board 5V switch mode supply provides up to 4A of current Power via 2.5mm socket or industrial power tabs Compatible with most 12V & 24V UPS Can be used with low cost passive PoE Compatible with batteries and most DC solar power systems Can power external USB, HDD & SSD Full access to Raspberry Pi's I2C, SPI, UART & most GPIO Provides 5V auxilliary power (e.g for Raspberry Pi Display) Slot for camera connector HDMI and audio accessible while in BAY Blade HUB I/O expansion socket Compatible with BitScope CAP industrial I/O Rack mount to build compute cluster solutions 4 x 3mm tabs and wall mounting stand-offs
