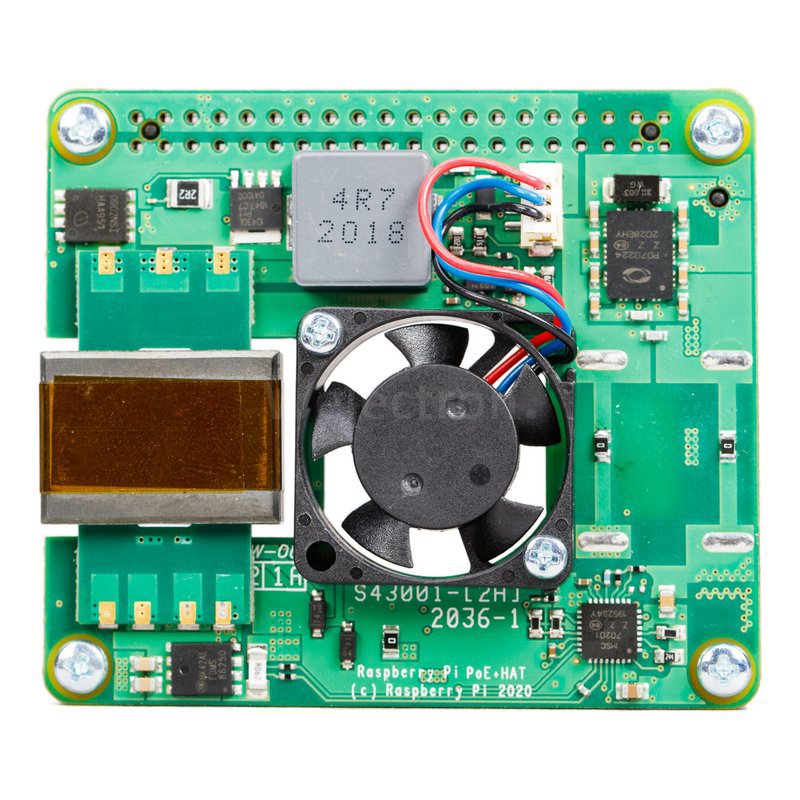

Raspberry Pi PoE+ hat - RPI-POEHat

PoE+ HAT er viðbóta borð fyrir Raspberry Pi sem er gert til að geta spennufætt Raspberry pi með netsnúrunni. Use this HAT to add PoE+ capability to your Raspberry Pi's Ethernet port. Compatible with Raspberry Pi 4 and Raspberry Pi 3B+. Power-sourcing equipment is required. Specification Standard: IEEE 802.3at-2009 PoE Input voltage: 37-57 V DC, Class 4 device Output power: 5 V DC/5 A Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling Features: fully isolated switched-mode power supply; fan control Operating temperature: 0 °C to +50 °C Installation Connecting your PoE+ HAT to your Raspberry Pi Before installing the PoE+ HAT, you must attach the supplied spacers in the four corners of the board Then connect the Raspberry Pi PoE+ HAT to the two 0.1" headers (40 + 4) that are fitted on your Raspberry Pi Once the PoE+ HAT board is connected, you can power your Raspberry Pi through its RJ45 network connector Disconnecting your PoE+ HAT Take care when separating the HAT from your Raspberry Pi Pull evenly so that it detaches from all the pins at the same rate; do not pull one end of the connector off before the other Additional information No modification to the main Raspberry Pi board is needed for this product to work. Please ensure that your Raspberry Pi’s software is up to date for all functionality to be available. The PoE+ HAT is fitted with a small fan that is controlled by your Raspberry Pi via I2C. The fan will turn on and off automatically depending on the temperature of the main processor on your Raspberry Pi.
