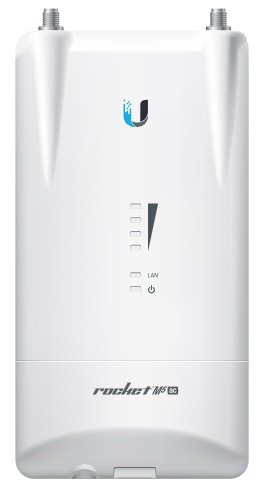

Rocket þráðlaus netsendir - R5AC-Lite

Features - 5 GHz Frequency Band The 5 GHz radio band is free to use, worldwide, offers plentiful spectrum, and works well for long-distance links. - Passive Power over Ethernet (PoE) Includes 24V Passive PoE functionality, which allows both power and data to be carried over a single Ethernet cable to the device. - Gigabit Ethernet The Rocket ac provides a Gigabit Ethernet connection to deliver high throughput. - Plug and Play Integration Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket ac. (airMAX ac antennas are recommended for optimal performance.) Rocket5ac Lite Launched with PtP functionality, the Rocket5ac Lite adds PtMP functionality with a firmware upgrade to airOS v7.1 or higher.     R5AC-Lite Physical / Electrical / Environmental Information   Dimensions   162 x 84 x 37 mm (6.38 x 3.31 x 1.46")   Weight   250 g (8.81 oz)   Enclosure Characteristics   Outdoor UV Stabilized Plastic   Processor   Atheros MIPS 74Kc, 720 MHz   Memory   128 MB DDR2 SDRAM, 16 MB NOR FLASH   Networking Interface   (1) 10/100/1000 Mbps   RF Connections   (2) RP-SMA (Waterproof )   LEDs   Power, Ethernet, (4) Signal Strength   Max. Power Consumption   8.5W   Power Supply   24V, 0.5A Gigabit PoE Adapter   Power Method   Passive PoE (Pairs 4, 5+; 7, 8 Return)   ESD/EMP Protection   ± 24KV Air / Contact   Operating Temperature   -40 to 80° C (-40 to 176° F)   Operating Humidity   5 to 95% Noncondensing   Shock and Vibration   ETSI300-019-1.4   R5AC-Lite Software Information   Modes   Access Point, Station   Services   Web Server, SNMP, SSH Server, Telnet, Ping Watchdog, DHCP, NAT, Bridging, Routing   Utilities   Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test   Distance Adjustment   Dynamic Ack and Ackless Mode   Power Adjustment   Software Adjustable UI or CLI   Security   WPA2 AES Only   QoS   Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low   Statistical Reporting   Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate Channel Sizes PtP Mode PtMP Mode     10/20/30/40/50/60/80 MHz 10/20/30/40 MHz   Other   Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM,   Ubiquiti Specific Features 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode   R5AC-Lite Compliance   Wireless Approvals   FCC, IC, CE   RoHS Compliance   Yes     R5AC-Lite Operating Frequency   Operating Frequency Worldwide: 5150 - 5875 MHz USA: 5725 - 5850 MHz   Output Power   27 dBm
