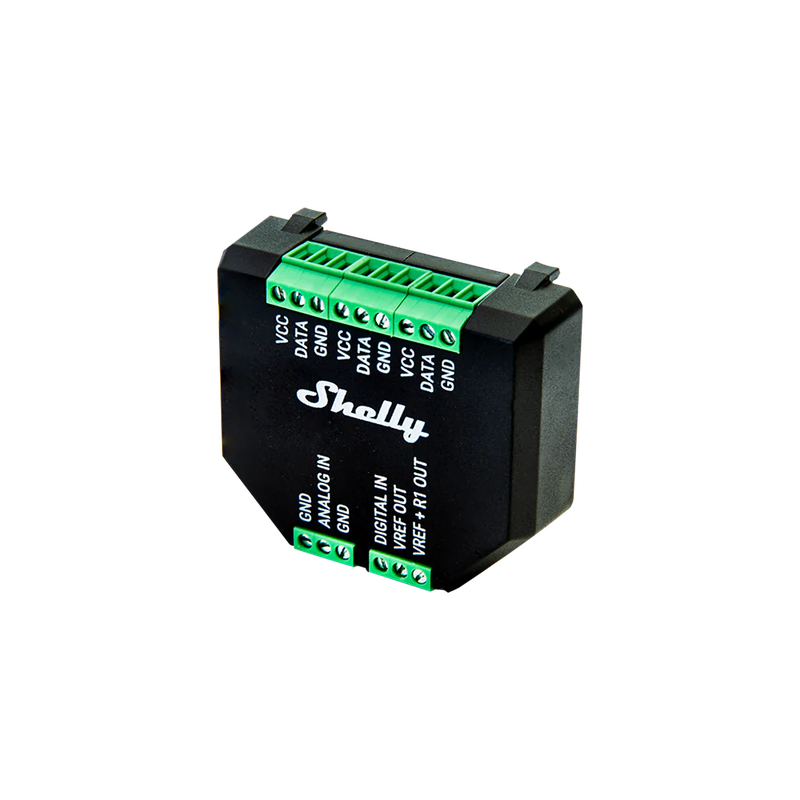

Shelly Plus Addon

PHYSICALSize (HxWxD):37x42x15 ±0.5 mm / 1.46 x 1.65 x 0.59 ±0.02 inWeigh:105 g / 3.70 ozShell material:PlasticColor:BlackENVIRONMENTALAmbient temperature:-20 °C to 40 °C / -5 °F to 105 °FHumidity30 % to 70 % RHMax. altitude2000 m / 6562 ftELECTRICALPower supply voltage AC:N/APower supply voltage DC:3.3 V (from Shelly plus device)Power consumption:< 0.5 W (without sensors)OUTPUT CIRCUITS RATINGSVCC max. current:10 mAVREF OUT max. current:1 mASHELLY PLUS DEVICE FIRMWARE CAPABILITIESShelly Plus Addon supporting devices:Shelly Plus 1/1PM, Shelly Plus 2PM, Shelly Plus i4/i4DCTemperature reading:Depends on the DS18B20 or DHT22 sensorsHumidity reading:Depends on the DHT22 sensorDigital input:-15 V to 0.5 V (True) / 2.5 V to 15 V (False)*Analog input range:0 to 100%Analog input report threshold:1%**Voltmeter range:0 to 10 VVoltmeter report threshold:0.1 V**
