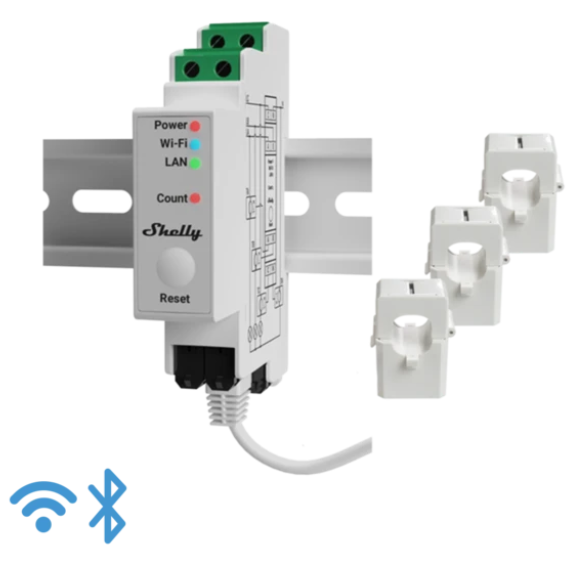

Shelly Pro 3EM (3 fasa mælieining)

PHYSICALSize (HxWxD):94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 inWeight:62 ±1 g / 2.19 ±0.05 ozMounting:DIN railScrew terminals max torque:0.4 Nm / 4.43 lbinConductor cross section:0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace lugs)Conductor stripped length:6 to 7 mm / 0.24 to 0.28 inShell material:PlasticColor:WhiteENVIRONMENTALAmbient temperature:-20 °C to 40 °C / -5 °F to 105 °FHumidity:30 % to 70 % RHMax. altitude:2000 m / 6562 ftELECTRICALPower supply voltage AC:110 - 240 V, 50/60 HzPower supply voltage DC:N/APower consumption:< 3 WSensors, metersTemperature sensor:YesVoltmeters (RMS for each phase):100 - 260 VVoltmeters accuracy:±1 %Ammeters (RMS via CT for each phase and the Neutral):0 - 120 AAmmeters accuracy:±1 % (2 - 120 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A)Power and energy meters:Active and apparent power, Active and apparent energy, Power factor, Fundamental active and fundamental reactive energyNo load threshold:30 VA per phaseMeasurement data storage:At least 60 days of 1 min data resolutionData export:CSV for PQ recorded values JSON format export through RPCRADIORF band:2400 - 2495 MHzMax. RF power:<20 dBmWi-Fi protocol:802.11 b/g/nWi-Fi Range:Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)Bluetooth Protocol:4.2Bluetooth Range:Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)MCUCPU:ESP32-D0WDQ6Flash:16 MBFIRMWARE CAPABILITIESWebhooks (URL actions):20 with 5 URLs per hookScripting:mJSMQTT:YesCoAP:No
