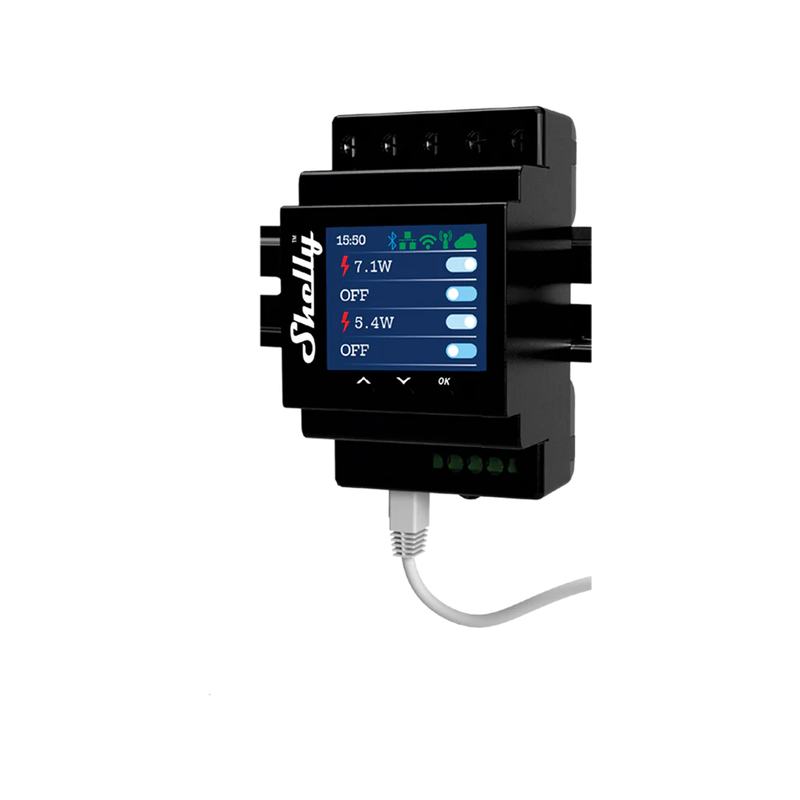

Shelly Pro 4PM snjallrelay með orkumælingu.

Frábært 4 rása Wi-Fi/LAN eins fasa eining frá Shelly sem passar beint inní töflu á DIN skinnu. Hentar frábærlega til ljósastýringa, tækjastýringa, til að stýra vaxlokum fyrir gólfhita eða fyrir útilýsinu með sólúr virkni stillanlegri fyrir hvern útgang. Þú getur svo stýrt einingunni með snjallstöð/HomeAssistant eða auðvitað fría Shelly Smartcontrol appinu sem þú getur sótt í Appstore/Playstore. TypeValue Physical Size (HxWxD):96x53x59 ±0.02 mm / 3.78x2.01x2.32 ±0.02 inWeight:Mounting:DIN railScrew terminals max torque:0.4 Nm / 3.5 lbin (green connectors)Conductor cross section:0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)Conductor stripped length:6 to 7 mm / 0.24 to 0.28 in (green connectors)Shell material:PlasticColor:Black Environmental Ambient temperature:-20 °C to 40 °C / -5 °F to 105 °FHumidity30 % to 70 % RHMax. altitude2000 m / 6562 ft Electrical Power supply voltage AC:110 - 240 VPower supply voltage DC:N/APower consumption:< 4 WNeutral not needed:No Output circuits ratings Max switching voltage AC:240 VMax switching voltage DC:N/AMax switching current AC:16 A per channel, 40 A totalMax switching current DC:N/A Sensors, meters Voltmeter (AC)YesAmmeter (AC)YesInternal-temperature sensor:Yes Radio RF band:2400 - 2495 MHzMax. RF power:<20 dBmWi-Fi protocol:802.11 b/g/nWi-Fi Range:Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)Bluetooth Protocol:4.2Bluetooth Range:Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions) MCU CPU:ESP32-D0WDQ6Flash:8 MB Firmware capabilities Schedules:20Webhooks (URL actions):20 with 5 URLs per hookScripting:YesMQTT:YesCoAP:NoBasic wiring diagram (≠) Resistive load  Inductive load and RC snubberLegend Terminals Wires O1 , O2 , O3 , O4 Load circuit output terminals L Live (110-240 V) wire S1 , S2 , S3 , S4 Switch/button input terminals N Neutral wire L Live (110-240 V) terminals N Neutral terminal LAN Local Area Network RJ 45 connector Troubleshooting
