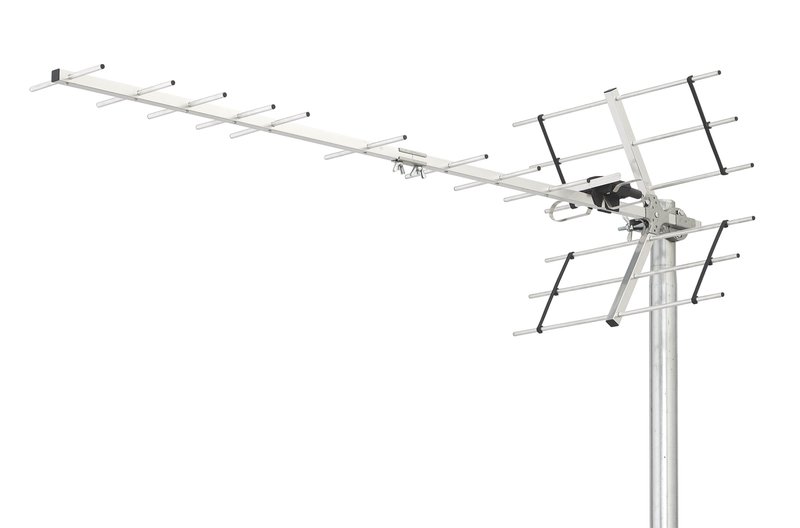

UHF loftnet, Triax 14dBi Digi18

TRIAX UHF LTE 700 Loftnet Triax Digi18 UHF loftnet. Þetta loftnet hentar vel þar sem að skilyrði eru slök fyrir móttöku. Það er með F tengi og hentar fyrir stafræna móttöku. Er með 700Mhz LTE síu. Triax bæklingur TRIAX UHF LTE 700 Aerials Disruption free installation from rooftop to outlet. Interference protection from LTE 700 & 800 signals Quick and easy installation with semi-assembled aerials Mechanical filtering for higher gain Reliable high-quality aerials secures end-consumer satisfaction Corrosion and weather proof dipole housing Designed to receive DTT signals in the 470...694 MHz range Access to reliable, expert support from TRIAX Specifications ORDER INFORMATION EAN Number 5702661054808 CHARACTERISTICS Type Digi 18 FREQUENCY Band B IV/V UHF Channels 21...48 Frequency range UHF 470...694 MHz LTE protection @ 700Mhz GAIN Gain 14 max dBi Gain @ 474 MHz (Ch. 21) 11.3 dBi Gain @ 602 MHz (Ch. 37) 12.5 dBi Gain @ 694 MHz (Ch. 48) 10.7 dBi LOSS Rejection @ 758 MHz (Ch. 56) 8.0 dB Rejection @ 788 MHz (Ch. 60) 8.9 dB ELECTRICAL Front to back ratio - horisontal 25 dB CONNECTORS Connector Type F-female MECHANICAL Elements 17 Windload 59 N Beamwidth horisontal ±25 ° Bracketry Cradle/support boom Main material Aluminium Product Length 1414 mm Product Width 480 mm Packing QTY 1 Packaging Height 0,080 m Packaging Width 0,230 m Packaging Depth 0,765 m Packaging Volume 0,014 m3 Net Weight 1,250 kg Tara Weight 0,350 kg Total Weight 1,600 kg
