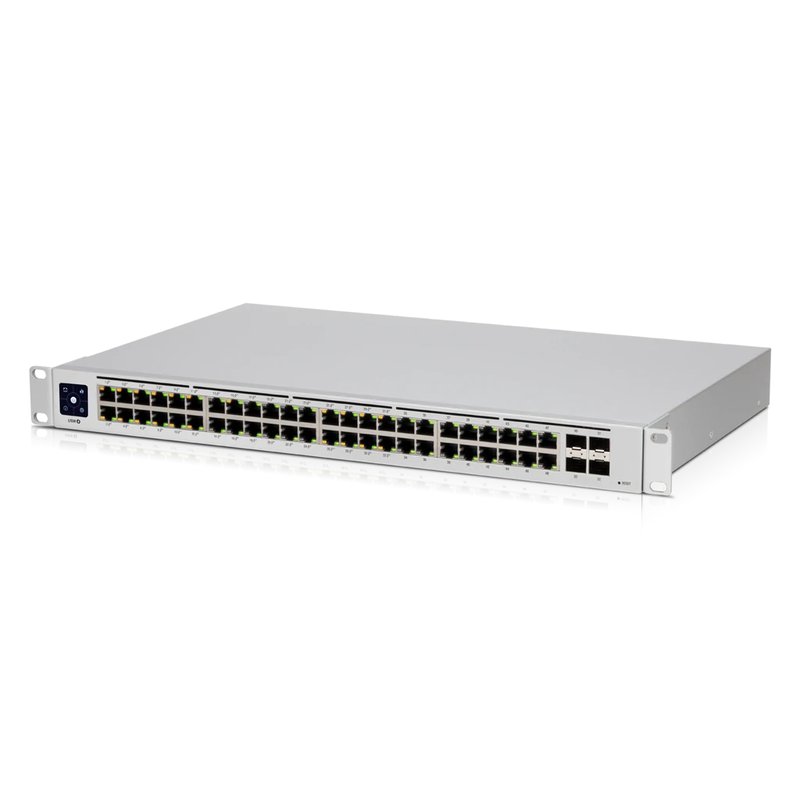

UniFi 48 porta, 32 PoE Switch USW-48-POE-EU

Layer 2, PoE switch with (48) GbE RJ45 ports, including (32) 802.3at PoE+ ports, and (4) 1G SFP ports. The Switch 48 PoE (USW 48 PoE) is a fully managed switch with (48) GbE RJ45 ports, including (32) GbE, 802.3at PoE+ ports, and (4) 1G SFP ports. The versatile USW 48 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. Features: (1) 1.3" LCM color touchscreen with AR switch management (32) GbE, 802.3at PoE+ RJ45 ports (16) GbE RJ45 ports (4) 1G SFP ports 195W total PoE supply Fanless, silent cooling Managed with the UniFi Network application: Version 5.12.32 and later Nánari upplýsingar hér Leiðbeiningar hér Mechanical Dimensions 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72") Weight With Rackmount Brackets 4.52 kg (9.97 lb) 4.61 kg (10.16 lb) Interfaces NetworkingManagement (48) 10/100/1000 RJ45 Ports (4) 1G SFP Ethernet Ports Ethernet In-Band Total Non-Blocking Throughput 52 Gbps Switching Capacity 104 Gbps Forwarding Rate 77.38 Mpps Power Method 100-240VAC, 50/60 Hz, Universal Input Power Supply AC/DC, Internal, 240W Supported Voltage Range 100 to 240VAC Max. Power Consumption (Excluding PoE Output) 45W LEDs RJ45 Data Ports SFP Data Ports PoE; Speed/Link/Activity Link/Activity ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature -5 to 40° C (23 to 104° F) Operating Humidity 10 to 90% Noncondensing Certifications CE, FCC, IC PoE Total Available PoE 195W PoE Interfaces Ports 1-32 POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) Max. PoE Wattage per Port by PSE 802.3at 32W Voltage Range 802.3af Mode 44-57V Voltage Range 802.3at Mode 50-57V
