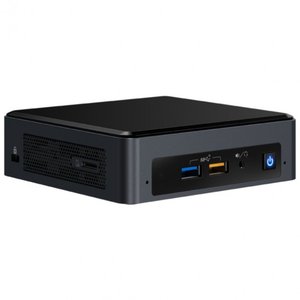

Barebone Intel NUC i5-7260U NUC7i5BNH M.2+2,5"

Intel
  • Upplýsingar

Barebone Intel NUC NUC7i5BNH (I5-7260U, Intel HD 640)
Intel Next Unit of Computing Kit NUC7I5BNH ...

  • Upplýsingar

Barebone Intel NUC NUC7i5BNH (I5-7260U, Intel HD 640)
Intel Next Unit of Computing Kit NUC7I5BNH

Technical description

General
Type: PC barebone
Product Form Factor: Mini PC
Built-in Devices: Infrared receiver
Processor / Chipset
CPU: Intel Core i5 (7th Gen) 7260U / 2.2 GHz
Max. Turbo Speed: 3.4 GHz
Number of Cores: Dual-Core
CPU Qty: 1
CPU Upgradability: Not upgradable
Processor Main Features: Intel Virtualization Technology, Intel AES New Instructions
Cache Memory
Installed Size: L3 Cache - 4 MB
Cache Per Processor: 4 MB
RAM
Installed Size: 0 MB / 32 GB (max)
Technology: DDR4 SDRAM
Form Factor: SO-DIMM 260-pin
Features: Dual channel memory architecture
Hard Drive
Type: No HDD
Storage Controller
Type: SATA
Controller Interface Type: SATA 6Gb/s
RAID Level: RAID 0, RAID 1
Card Reader
Type: Card reader
Supported Flash Memory Cards: SDXC UHS-I Memory Card
Monitor
Monitor Type: None
Graphics Controller
Graphics Processor: Intel Iris Plus Graphics 640
Video Interfaces: HDMI, DisplayPort
Max. Monitors Supported: 3
Audio Output
Sound Output Mode: 7.1 channel surround
Compliant Standards: High Definition Audio
Networking
Ethernet Controller: Intel I219-V
Wireless LAN Supported: Yes
Wireless NIC: Intel Dual Band Wireless-AC 8265
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2
Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2
Expansion / Connectivity
Bays: 1 (total) / 1 (free) x internal M.2 2242/2280 ¦ 1 (total) / 1 (free) x internal 2.5"
Slots: 2 (total) / 2 (free) x SO-DIMM 260-pin
Interfaces: 4 x USB 3.0 - Type A (2 front, 2 rear) (one of them is fast-charging), 2 x USB 2.0 (2 internal), 1 x HDMI, 1 x headphones/microphone - mini-jack, 1 x LAN (Gigabit Ethernet) - RJ-45, 1 x Thunderbolt 3/DisplayPort/USB-C 3.1 Gen 2, 2 x SATA-600 (2 internal)
Miscellaneous
Included Accessories: VESA mounting kit, processor badge
Theft/Intrusion Protection: Security lock slot (cable lock sold separately)
Compliant Standards: ICES-003, EN55024, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, WEEE, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, CAN/CSA C22.2 No. 60950-1, VCCI V-3, VCCI V-2, EN 62311, VCCI V-4, Directive 2012/19/EU, Directive 2011/65/EU, KN24, China RoHS, CNS 13438, ETSI EN 301 489-17, KN32, ETSI EN 301 489-1, ETSI EN 301 893, AS/NZS 2772.2, FCC CFR47 Part 15 E, CISPR 32, EN 55032, ETSI EN 301 328
Power
Device Type: Power adapter
Power Provided: 65 Watt
Manufacturer Warranty
Service & Support: Limited warranty - 3 years
Dimensions & Weight
Width: 11.5 cm
Depth: 11.1 cm
Height: 5.1 cm
Environmental Parameters
Min. Operating Temperature: 0 °C
Max. Operating Temperature: 40 °C
