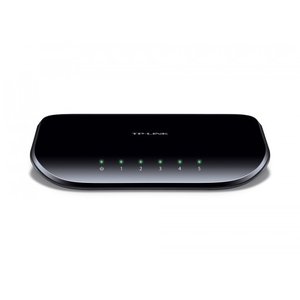

Switch TP-Link 10/100 5P TL-SF1005D

TP-Link

TL-SF1005D er 5 porta 10/200 Mbps sviss
Hagkvæmur sviss með hámarks afkastagetu.  Hvert port fyrir sig skynjar á sjálfvirkan hátt mestu mögulega bandbreidd og t...

TL-SF1005D er 5 porta 10/200 Mbps sviss
Hagkvæmur sviss með hámarks afkastagetu.  Hvert port fyrir sig skynjar á sjálfvirkan hátt mestu mögulega bandbreidd og tengir síðan portið á þá bandbreidd (10 Mbps - 200 Mbps).

  • Crossover uplink stuðningur
  • Samræmist IEEE 802.3u fyrir 100BASE-TX og IEEE 802.3 stöðlum fyrir 10BASE-T
  • FCC og CE vottaður
  • Utanáliggjandi spennugjafi
  • Upplýsingar
TP-Link TL-SF1005D 5-Port Unmanaged 10/100M Desktop Switch
TL-SF1005D 5-port 10/100Mbps Fast Ethernet Switch provides 5X 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
Specifications
  • Mfr. Part Number: TL-SF1005D
  • Features:
    • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
    • Supports MAC address auto-learning & auto-aging
    • LED indicators for monitoring power, link, activity
    • Plastic case, desktop or wall-mounting design
    • External Power Adapter supply
  • Standards and Protocols: IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
  • Ports: 5x 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
  • Basic Function:
    • Wire-speed Performance
    • MAC Address Auto-Learning and Auto-aging
    • IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
  • Backbound Bandwidth: 1Gbps
  • MAC Address Table: 1k
  • Forwarding Rate:
    • 10BASE-T: 14880pps/port
    • 100BASE-TX: 148800pps/port
  • Transmission Method: Store-and-Forward
  • Network Media:
    • 10Base-T: UTP cat. 3, 4, 5 cable (max. 100m)
    • EIA/TIA-568 100 STP (maximum 100m)
    • 100Base-Tx: UTP cat. 5, 5e cable (max. 100m)
    • EIA/TIA-568 100 STP (maximum 100m)
  • LED Indicator: Power, Link/Act (1, 2, 3, 4, 5)
  • Safety & Emission: FCC, CE
  • Power: External Power Adapter
  • Dimensions(WxDxH): 140.0 x 87.0 x 27.5 mm
