Tölvukassi InWin Chopin Black BQ696 150W mITX

InWin

Gullfallegur tölvukassi fyrir Mini-ITX móðurborð, hægt að setja tvo 2,5" SATA diska í tölvuna. Innbyggður 150W 80+ Bronze spennugjafi fylgir. Umgjörðin er úr 4mm áli, óað...

Gullfallegur tölvukassi fyrir Mini-ITX móðurborð, hægt að setja tvo 2,5" SATA diska í tölvuna. Innbyggður 150W 80+ Bronze spennugjafi fylgir. Umgjörðin er úr 4mm áli, óaðfinnanlegur kassi frá hinum margviðurkennda framleiðanda In-Win.

  • Upplýsingar

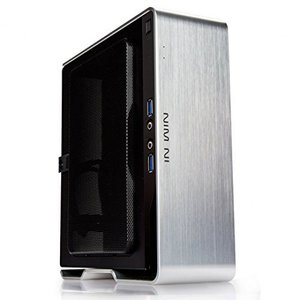

In Win BQ696 Chopin mITX 150 W Power Supply Unit Case with Customisable Front Panel - Black

  • Elegant and Vibrant Exterior - 4mm Brush Aluminum Exterior, Perforated Mesh Panel for Excellent Ventilation
  • Eco & User Friendly Structure - 150W 80 Plus Bronze PSU Included, Supports 2 x 2.5" SSD
  • Easily Grounded - Dual Orientation Position
  • Retail Design - Black throughout
  • Thermal Solution - Supports CPU Heatsink Height up to 43mm, CPU Heatsink width up to 51mm


Space Savvy Design
Innovative dual layout structure with 2 x 2.5” drive bays located at the other side of motherboard main plate for maximum expandability in a compact size.
Perforated Mesh Panels
The top and side mesh panel design enhances the heat dissipation and provides excellent ventilation.
150W 80 PLUS Bronze Adapter Included
A small, yet powerful 150 watt adapter features low noise and maximum efficiency.
Dual Orientation
Ultra small form factor design takes little space on your desk, and it can be positioned horizontally or vertically for maximum space saving.

Technical Description

  • Model: Chopin
  • Color: Black
  • Case Type: Mini-ITX Tower
  • Case Material: Aluminium, SECC
  • M/B Compatibility: Mini-ITX (Max:6.7" x 6.7")
  • Expansion Slots: N/A
  • Front Ports: 2 x USB 3.0. HD Audio
  • External Drive Bays    N/A
  • Internal Drive Bays    2 x 2.5"
  • Thermal Solution Compatibility:
    • CPU Heatsink Compatible
    • CPU die surface to side panel height: 43mm Maximum
    • Motherboard to side panel height: 51mm Maximum
  • Power Supply Compatibility:150W Internal PSU Included 80+ Bronze
  • Product Dimension: (H x W x D)    244mm x 84mm x 217mm (9.6" x 3.3" x 8.6")
  • Package Dimension: (H x W x D)    276mm x 120mm x 275mm 10.9" x 4.7" x 10.8"
  • Net Weight: 2.2kg/4.8lb
  • Gross Weight: 2.5kg/5.5lb
