Skjákort Sapphire RX 580 8GB Nitro+ Dual-X

Sapphire

Eitt mest selda skjákortið í heiminum í dag, Sapphire AMD RX580 8GB Nitro+ . Hér færðu gríðarleg afsköst og vandaða/hljóðláta kælingu. Rúllaðu upp öllum leikjum í allt að 4K upplaus...

Eitt mest selda skjákortið í heiminum í dag, Sapphire AMD RX580 8GB Nitro+ . Hér færðu gríðarleg afsköst og vandaða/hljóðláta kælingu. Rúllaðu upp öllum leikjum í allt að 4K upplausn og farðu létt með það! Mundu að nota einungis hágæða spennugjafa með þessu korti.

  • Upplýsingar

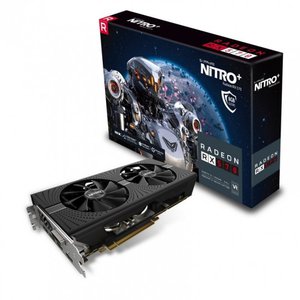

SAPPHIRE NITRO+ Radeon™ RX 580 8GD5

To continuous streamlining of FinFET 14 nm production process, the latest Polaris GPUs that power SAPPHIRE NITRO+ Radeon RX 580 cards are even more energy-efficient. This allowed SAPPHIRE to crank up the clocks and reach up to 10% better performance compared to previous series. To add even more headroom for overclocking. Factory overclocked cores of the standard SAPPHIRE NITRO+ RX 580 run with a 1411 MHz boost clock.

4th generation Graphics Core Next GPUs of the Radeon RX 500 Series feature improved geometry engine, new display engine, increased caches and native asynchronous shaders. Equipped with 2304 GCN-based stream processors, the SAPPHIRE NITRO+ Radeon RX 580 is the card to run modern games in 1080p and beyond, as well as deliver premium VR experiences.

GPU

  • 2304 Stream Processors
  • 14 nm FinFET
  • 4th Graphics Core Next (GCN)
  • 1411 MHz Boost Engine Clock


Memory

  • 256 bit Memory Bus
  • GDDR5 Memory Type
  • 2000 MHz, 8000 MHz Effective
  • 8 GB Size

BIOS Support

  • UEFI BIOS


Displays

  • Maximum 5 Outputs


Output

  • 1 x DVI-D
  • 2 x HDMI
  • 2 x DisplayPort 1.4


Resolution

  • 5120×2880 (60Hz) Pixel DisplayPort Resolution
  • 2560x1600 (60Hz) Pixel Dual Link DVI Resolution
  • 4096×2160 (60 Hz) HDMI Resolution


API

  • OpenGL® 4.5
  • OpenCL 2.0
  • DirectX® 12
  • Shader Model 5.0


Feature

  • AMD CrossFire
  • FreeSync Technology
  • AMD Eyefinity
  • Quad HD Display (4K*2K Support)
  • Dual BIOS
  • AMD Liquid VR Technology
  • AMD Xconnect ready
  • DirectX™ 12 Optimized
  • Radeon VR ready Premium
  • HDR Ready
  • Frame Rate Target Control
  • NITRO Fan Check
  • NITRO Quick Connect system
  • NITRO Glow RGB LED
  • NITRO CoolTech(NCT)
  • NITRO Free Flow
  • Dual-X Cooling
  • NITRO Boost
  • Intelligent Fan Control III
  • Black Diamond Choke 4
  • Fuse protection
  • Precision fan control
  • Robust VRM Cooling
  • Radeon Chill
  • Radeon Relive


Cooling

  • Dual-X fans
  • Two ball bearing


Form Factor

  • 2.2 Part Slot Occupied
  • 260(L)X 135(W)X 43 (H) Dimension /mm


Power Consumption

  • <235W

System Requirement

  • 500 Watt Power Supply (Suggestion)
  • OS Windows 10 Windows 7
  • 1 x 8-pin AUX Power Connector
  • 1 x 6-pin AUX Power Connector
  • CD-ROM or DVD-ROM drive for installing software
  • Blue-ray™ / HD DVD playback requires Blu-ray / HD DVD drive.
  • PCI Express® 2.0 or higher version based PC is required with one X16 lane graphics slot available on the motherboard in order for the card to be compatible with.

Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
Colors of PCB or other components may differ from those illustrated.
SAPPHIRE reserves the right to update or revise specifications without prior notice.
All trademarks and logos are acknowledged as the property of their respective holders.
